CNC Fiber Laser Sheet Cutting Machine

This CNC fiber laser sheet cutting machine integrates laser cutting, precision machinery and numerical control technology, and is a professional metal sheet processing equipment. It is mainly used for cutting ordinary carbon steel, stainless steel and other metal sheets, widely applied in sheet metal processing, advertising, kitchenware, electrical cabinet and other industries, featuring high cutting precision, high processing efficiency and stable performance, with optional automatic loading system to meet different production needs.
  • HSコード :

    8456120000
  • 分。注文 :

    1 Set
  • 製造時間 :

    15-25 Working Days
  • 支払い条件 :

    T/T, L/C, Western Union
  • 梱包方法 :

    Wooden Case
  • 品質保証期間 :

    12 Months
  • 年間生産能力 :

    200 Sets/Year
  • 顧客設計または OEM :

    Available

CNC Fiber Laser Sheet Cutting Machine


Features Of CNC Fiber Laser Sheet Cutting Machine

  • High-precision cutting, X/Y-axis positioning accuracy ±0.03mm/m, repeated positioning accuracy ±0.02mm/m
  • 3000W high-efficiency fiber laser source, excellent beam quality, smooth and burr-free cutting edge
  • User-friendly industrial computer control system with red light positioning, supporting graphic retrieval and one-key calibration for easy operation
  • Heavy-duty stress-relieved welded frame with adjustable feet, suitable for various workshop environments
  • Dual-temperature chiller system, supporting long-time continuous operation and avoiding lens condensation damage
  • Multiple safety configurations (explosion-proof pipes, fireproof drag chains) to ensure operation safety
  • Automatic oil injection system, extending the service life of transmission components
  • Convenient bull eye wheel feeding device and anti-scratch sawtooth cutting table

Technical Parameters

Processing area (L×W): 3000mm×1500mm

X-axis travel: 1500mm

Y-axis travel: 3000mm

Z-axis travel: 150mm

Recommended batch cutting thickness (carbon steel): ≤12mm

Main machine overall dimension (L×W×H): About 4600×2350×1850mm

Laser power: 3000W

Complete power: About 15Kw

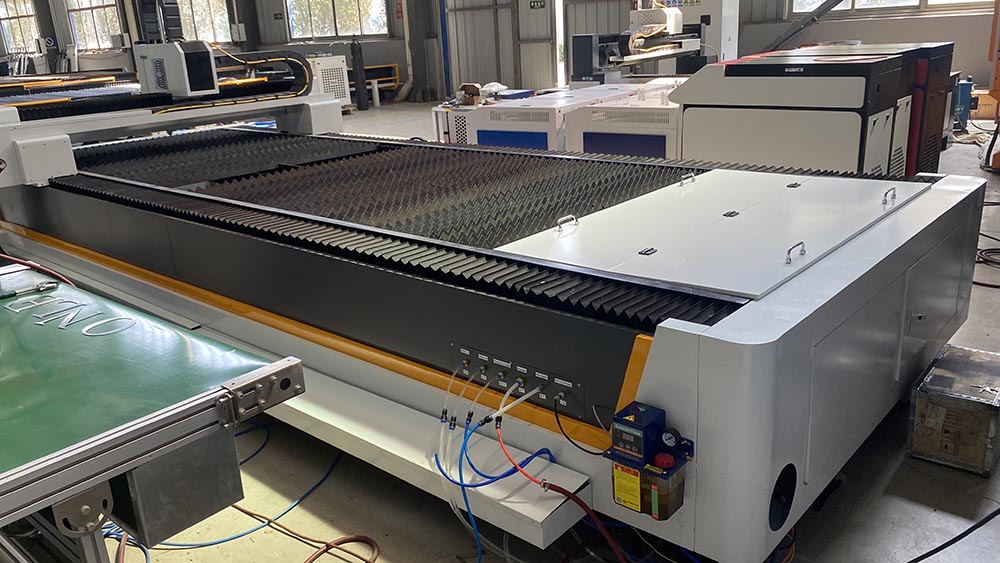

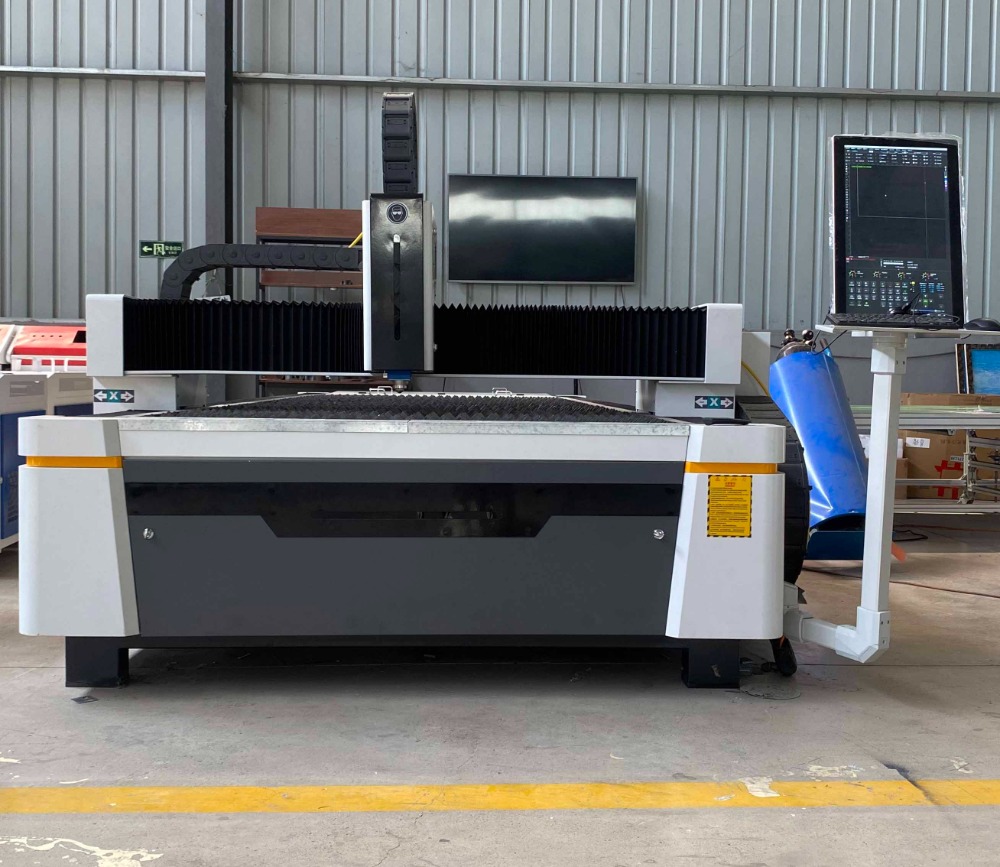

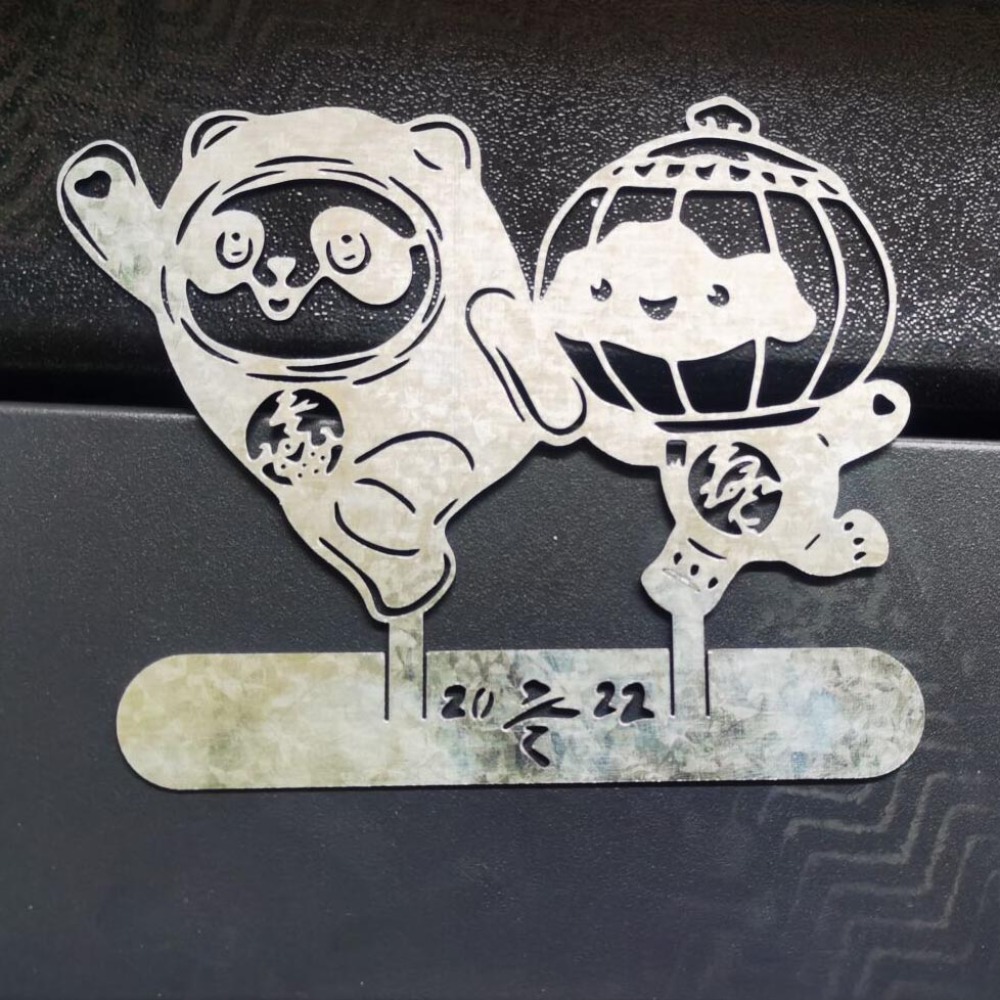

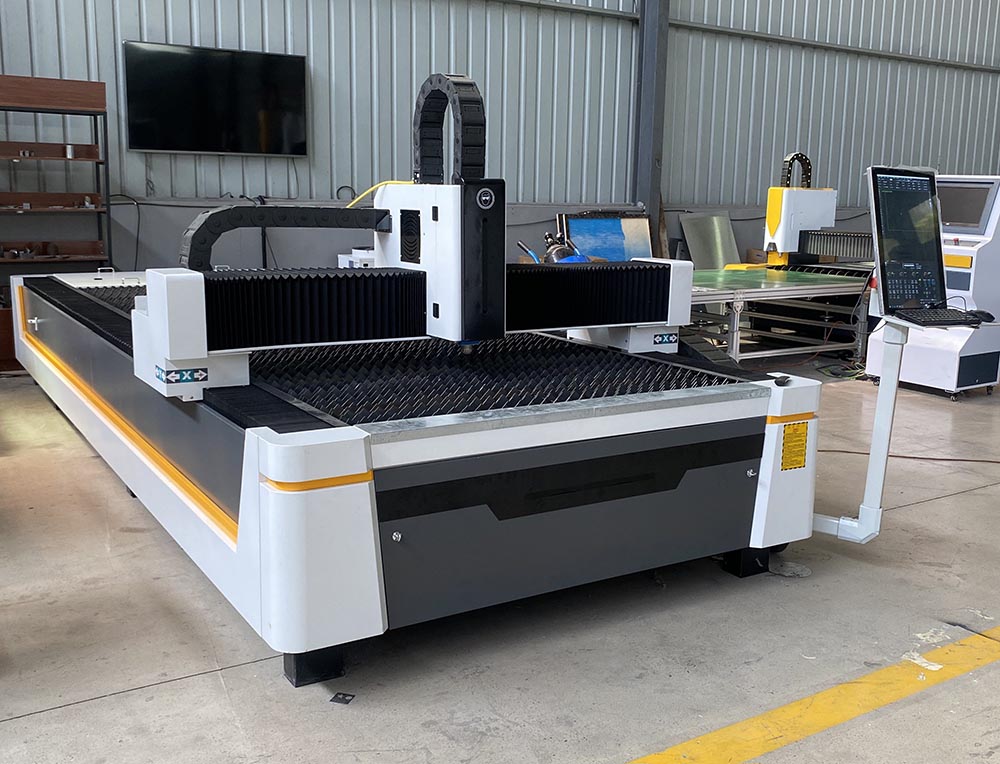

Real Photos


FAQ:

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

 3.How about your machine quality?

HCY company is a mature brand in CHINA,through our 15 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.

4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.

5.Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
