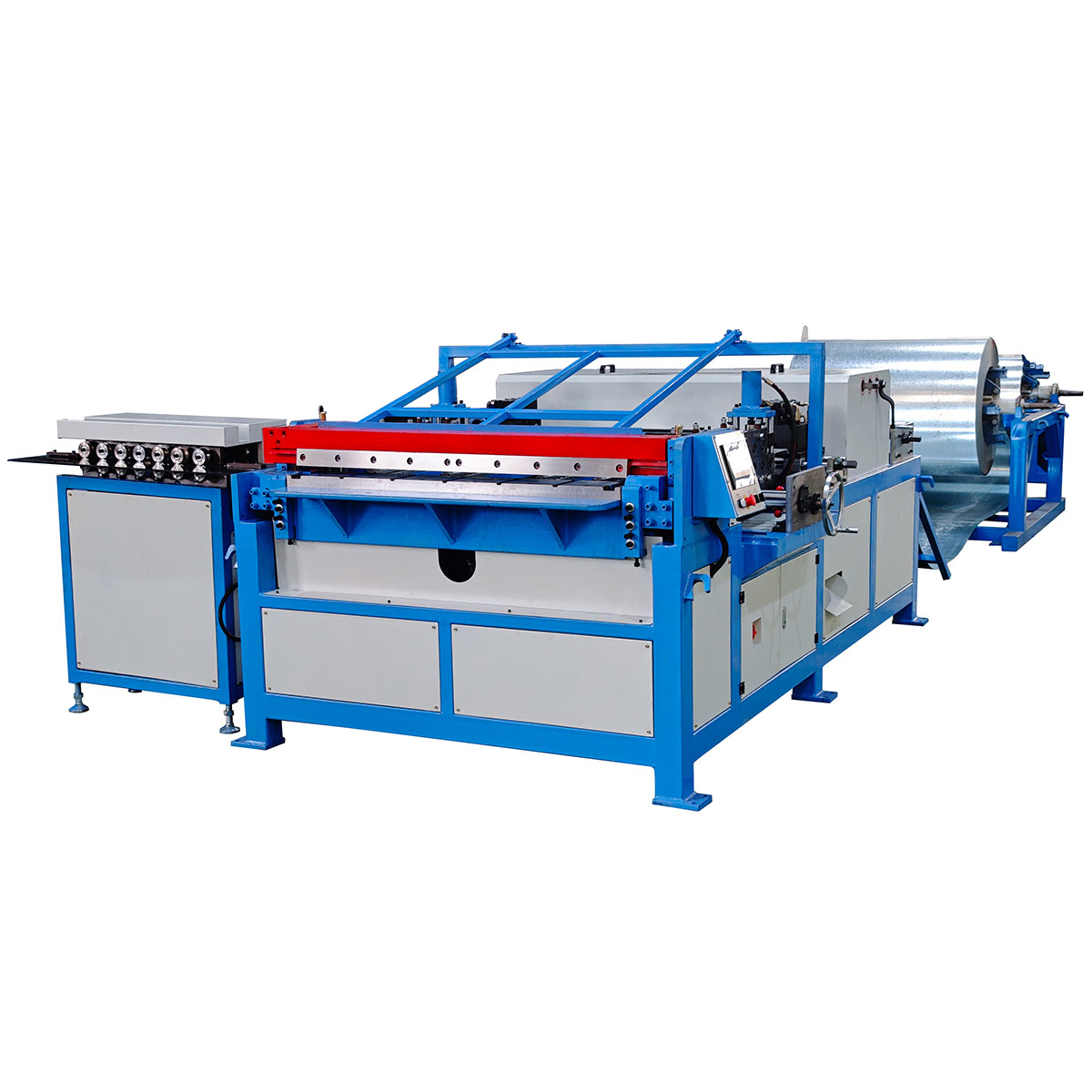

CS Duct Automatic Production Line

Features Of CS Duct Production Line

• Split modular structure: Composed of main machine, Pittsburgh lock machine and material rack, easy for transportation, installation and on-site layout.

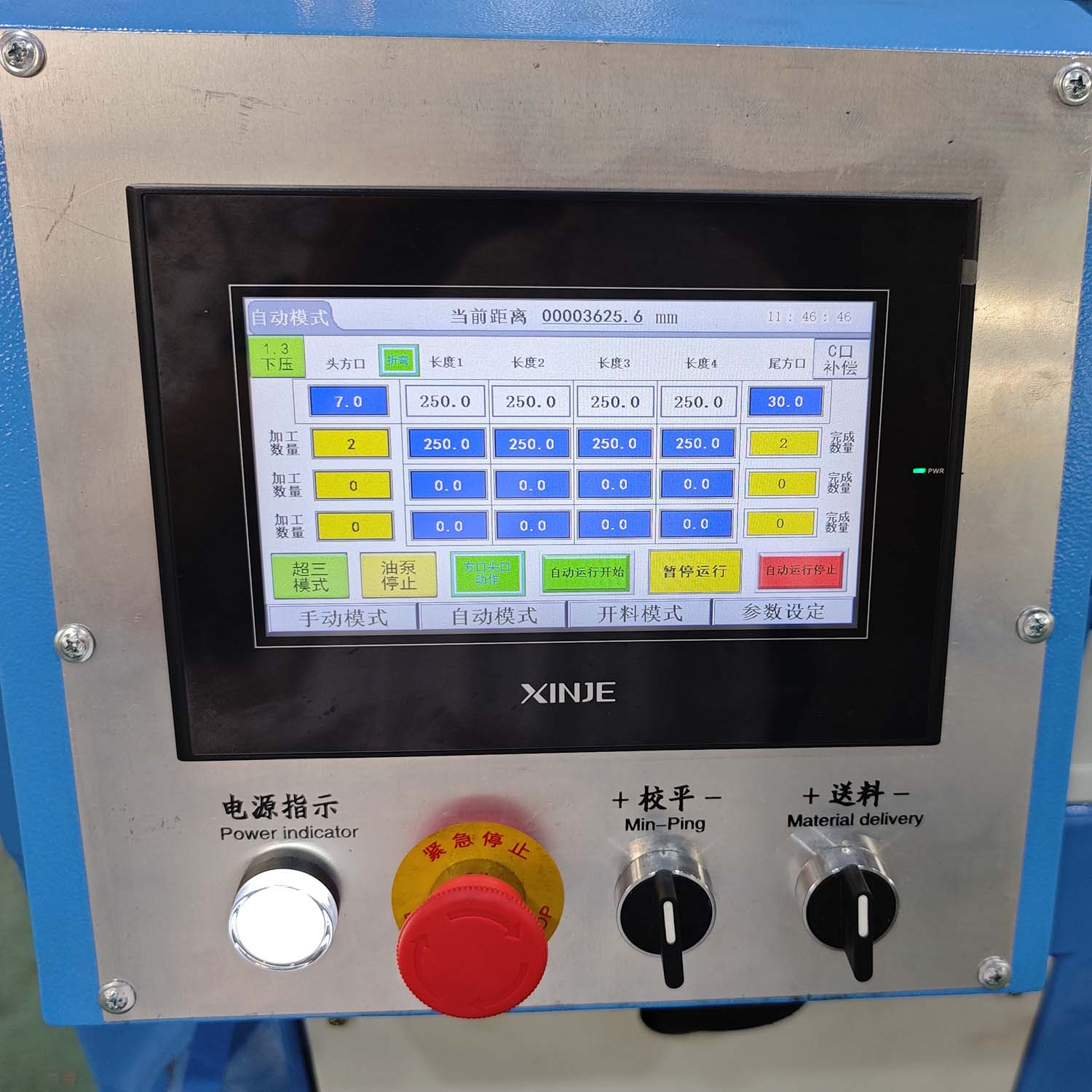

• Intelligent PLC control: Adopts PLC + touch screen control system, supports parameter preset, automatic operation and real-time fault alarm, simple for daily operation.
• High processing precision: The fixed-length shearing tolerance is controlled within ±0.5mm, guaranteeing uniform duct finished size and assembly performance.
• Wide material compatibility: Suitable for processing galvanized steel sheet, stainless steel sheet and aluminum sheet, meeting diverse duct production demands.
• Heavy-duty material rack: The decoiling rack supports single coil load up to 7 tons, with expandable mandrel for different coil inner diameters.
• Reliable mechanical performance: Independent functional units for leveling, beading and shearing, stable operation and long service life.
• Complete safety design: Equipped with emergency stop buttons, protective covers and electrical protection devices to ensure operator safety.

• Convenient maintenance: Standard modular design, classified daily, weekly, monthly and annual maintenance to reduce maintenance difficulty.

  ---

Technical Parameters

• Machine Model: CS-1250
• Applicable Materials: Galvanized steel sheet, stainless steel sheet, aluminum sheet
• Processing Sheet Thickness: 0.5 ~ 1.2 mm
• Max Sheet Width: 1250 mm
• Feeding Speed: 0 ~ 18 m/min
• Shearing Precision: ±0.5 mm

• Power Supply: AC380V, 50Hz

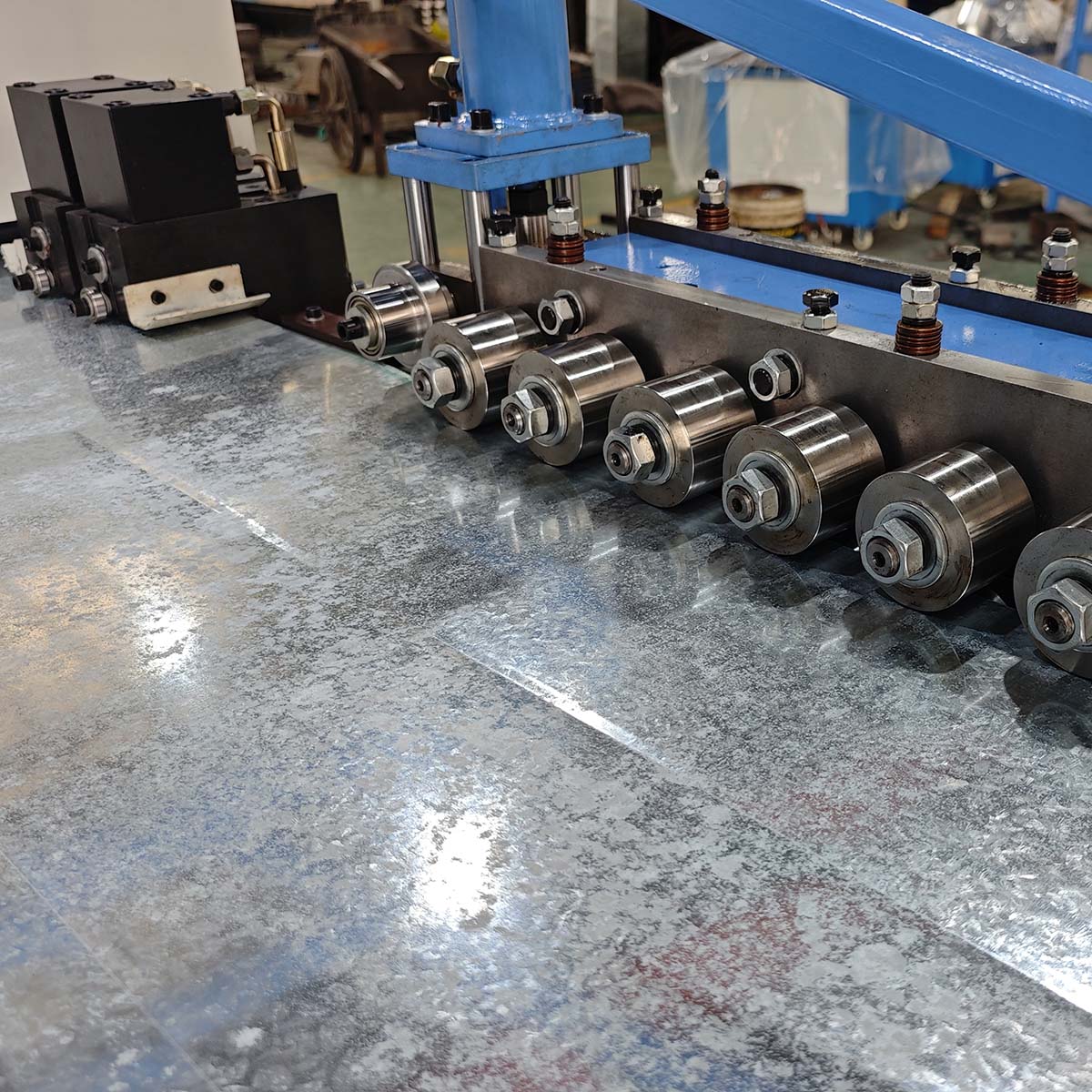

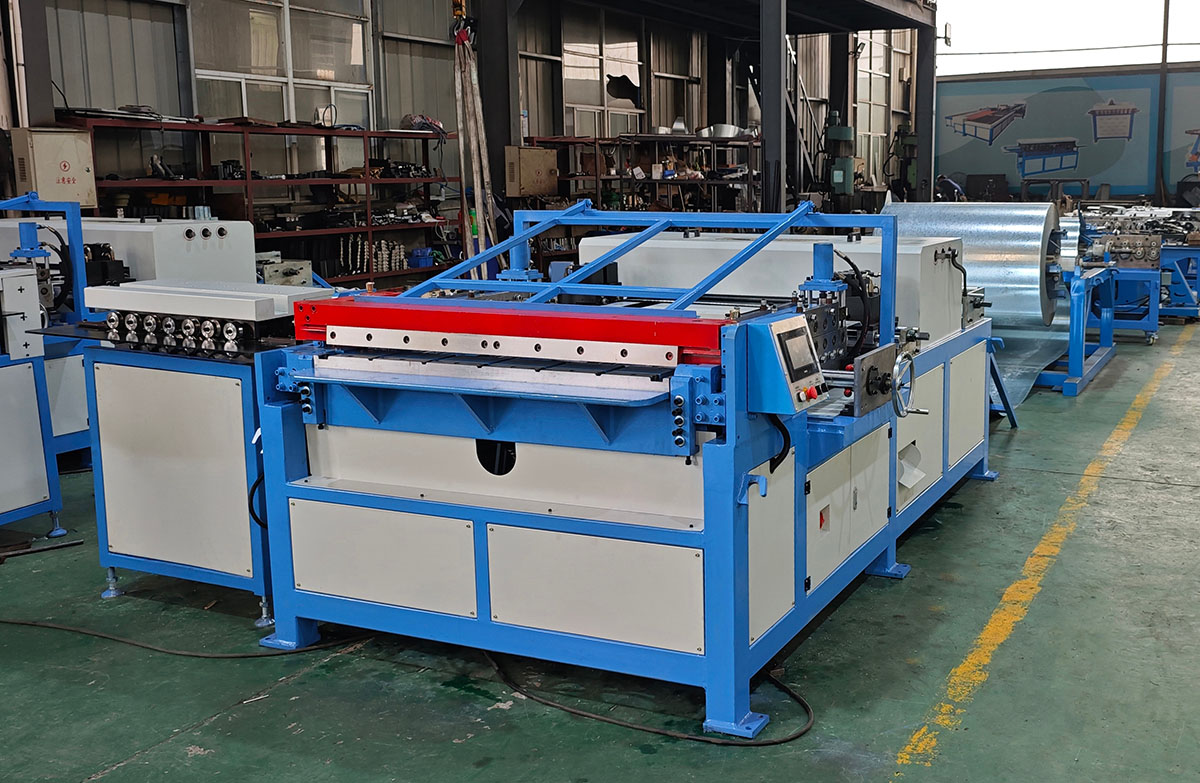

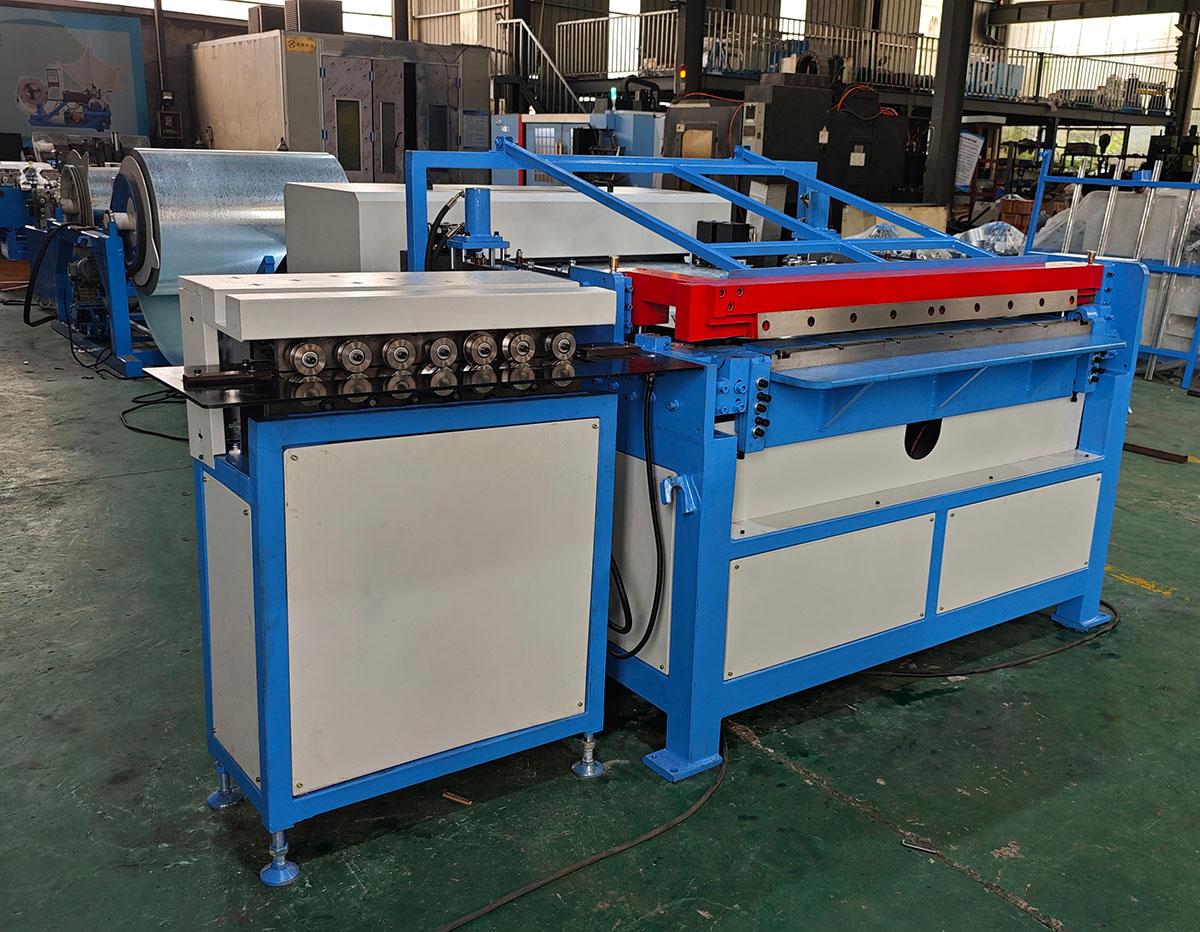

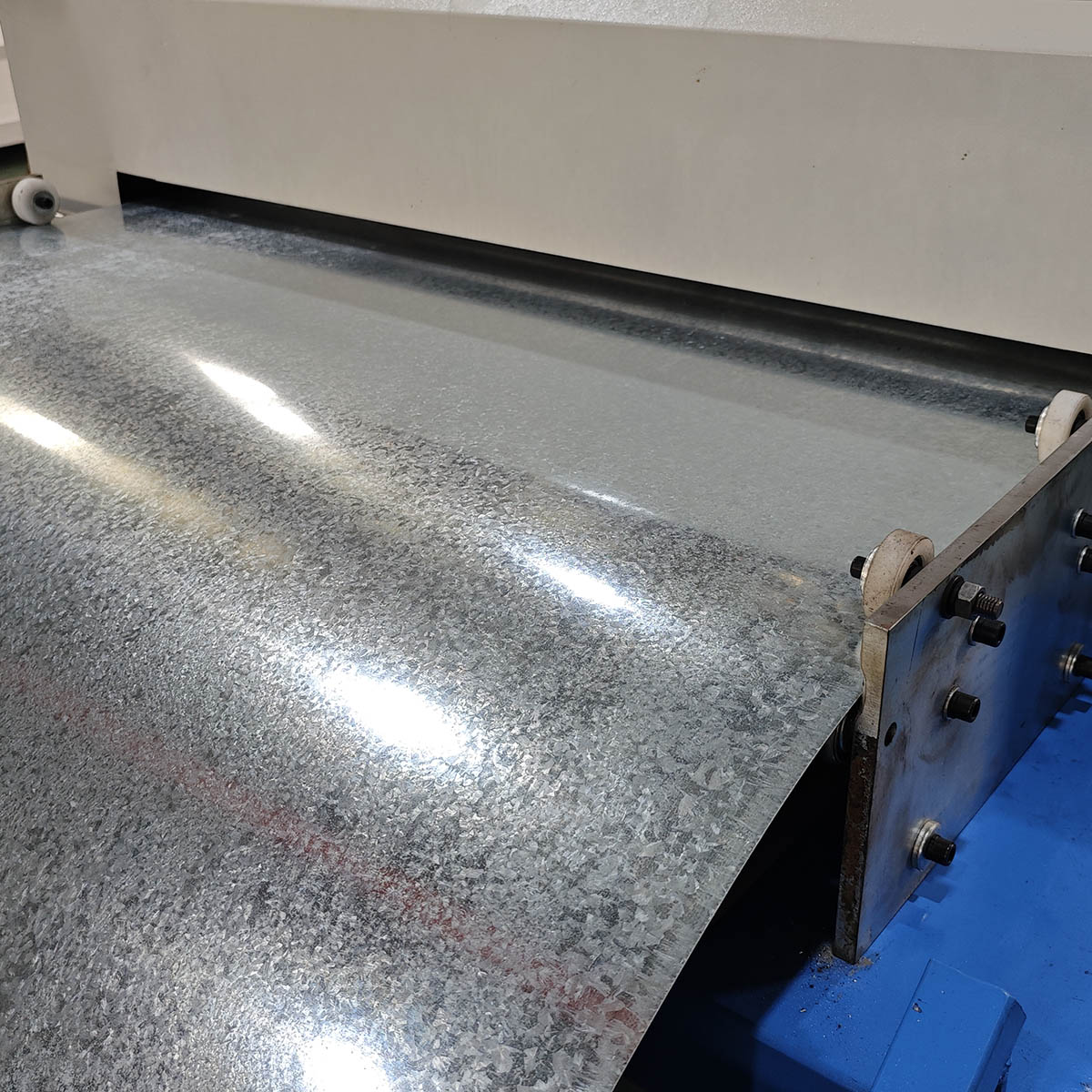

Real Photo

FAQ

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

 3.How about your machine quality?

HCY company is a mature brand in CHINA,through our 15 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.

4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.

5.Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
