In the world of HVAC ductwork installation, the weakest link is almost always the joint. Poorly sealed seams and flanges lead to air leakage, whistling noises, and severe energy loss. To meet stringent international quality benchmarks like the SMACNA (Sheet Metal and Air Conditioning Contractors' National Association) standards, fabricators must ensure absolute precision in every connection. Achieving this level of airtightness is impossible without reliable, specialized machinery—specifically, Pittsburgh Lock Forming Machines and TDF Flange Forming Machines.

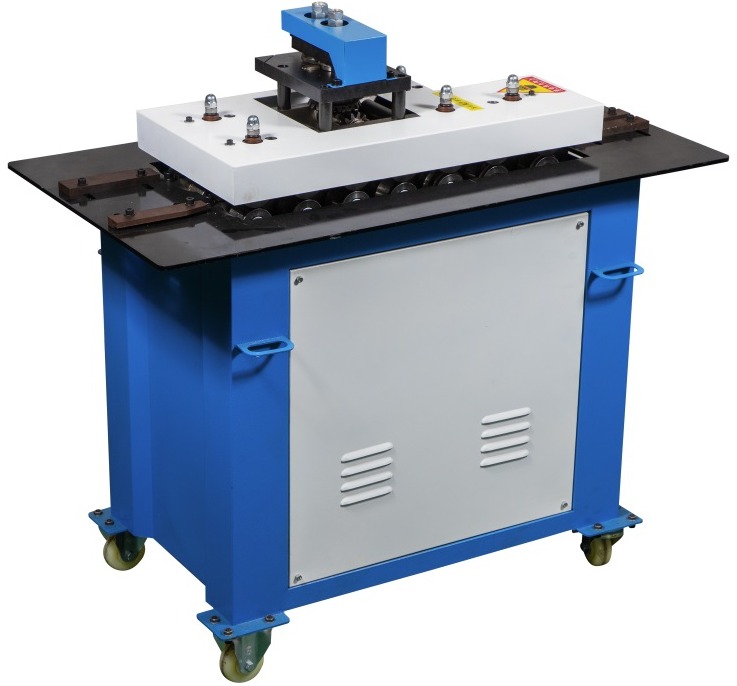

The Pittsburgh lock is the undisputed industry standard for longitudinal seams in rectangular ductwork. It provides a secure, interlocking mechanical bond that holds the sheet metal tightly together without the need for welding. A high-quality HVAC Multifunctional Pittsburgh Lock Forming Machine takes flat sheet metal and rolls it into this complex profile with absolute consistency. The machine utilizes high-grade steel gears and rollers treated with rigorous heat processes to handle plate thicknesses from 0.4mm to 1.5mm. When properly formed, a Pittsburgh lock guarantees structural integrity and prevents air from escaping along the length of the duct.

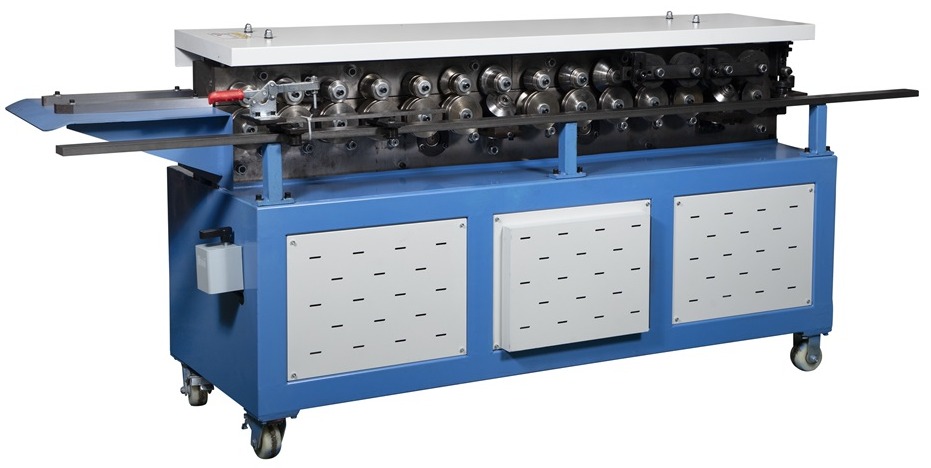

Equally important are the transverse connections—where two duct sections meet. Traditionally, attaching separate flanges was a time-consuming, labor-intensive process. Today, the TDF (Transverse Duct Flange) Flange Forming Machine has revolutionized this step. A TDF machine forms the flange directly onto the edge of the duct body itself. This seamless integration eliminates the need for separate flange attachments, drastically reducing material costs and assembly time.

More importantly, a flange formed directly from the duct wall provides superior sealing characteristics. When two TDF ducts are bolted together with an appropriate gasket, they create an incredibly airtight seal that easily passes rigorous duct leakage tests.

For any serious sheet metal fabrication workshop, these machines are non-negotiable. Relying on outdated manual folding techniques not only slows down production but also compromises the quality of the final product. By equipping your facility with precision lock forming and flanging machinery, you guarantee that your ducts are durable, airtight, and fully compliant with the highest global engineering standards.
