Ovalizer Machine

Our oval-shaped duct adopts an innovative direct-forming process from spiral round duct. We’ve upgraded its structure to significantly boost stability, and used a multi-cylinder system to flawlessly transform round to oval—creating a far more refined shape than earlier designs.

HSコード :
8462290000
分。注文 :
1 Set
製造時間 :
10-20 Working Days
支払い条件 :
T/T (30% Deposit + 70% Balance Before Shipment), L/C, D/P
梱包方法 :
Export Standard Wooden Case (With Iron Frame Reinforcement & Waterproof Film)
品質保証期間 :
12 Months
年間生産能力 :
300 Sets/Year
顧客設計または OEM :
Available

今すぐお問い合わせください

製品詳細

Round Duct Flange Forming Machine

I. Round Duct Flange Forming Machine's Features:

Innovative Forming Process & Refined Structure：Adopts an innovative direct - forming process from spiral round ducts. With a multi - cylinder system, it flawlessly transforms round ducts into oval ones, creating a far more refined shape than earlier designs. Meanwhile, the upgraded structure significantly enhances stability.

1. Powerful & Adaptable Equipment

Core & Power: Equipped with a motor as the core component, with a power of 18.5kw, capable of processing sheets with a thickness of 0.4 - 1.2mm, suitable for various material thickness requirements.

Size & Capacity: The equipment dimension is 563012501130mm, and it can produce oval ducts with a maximum length of 3100mm, meeting diverse production specifications.

2. User - Friendly & Reliable Support

Operation & Customization: Features easy operation. Voltage (380v/220v) and color can be customized according to customer requirements.

Quality Assurance: Provides video outgoing - inspection and machinery test reports. Offers a 1 - year warranty, ensuring reliable after - sales service.

II. Technical Parameters

1.Machine name: Ovalizer Machine

2.Thickness range: 0.4-1.2mm

3.Power: 18.5 kW

4.Weight: 2720 kg

5.Dimension: 5630×1250×1130 mm

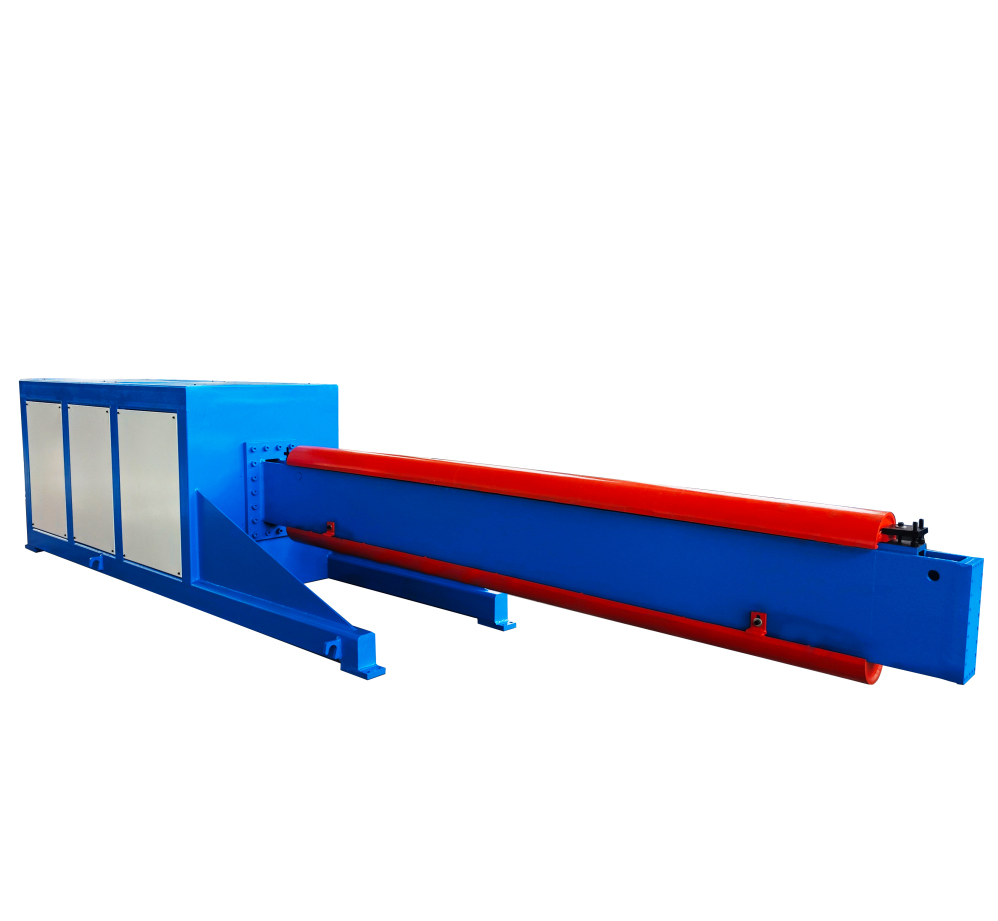

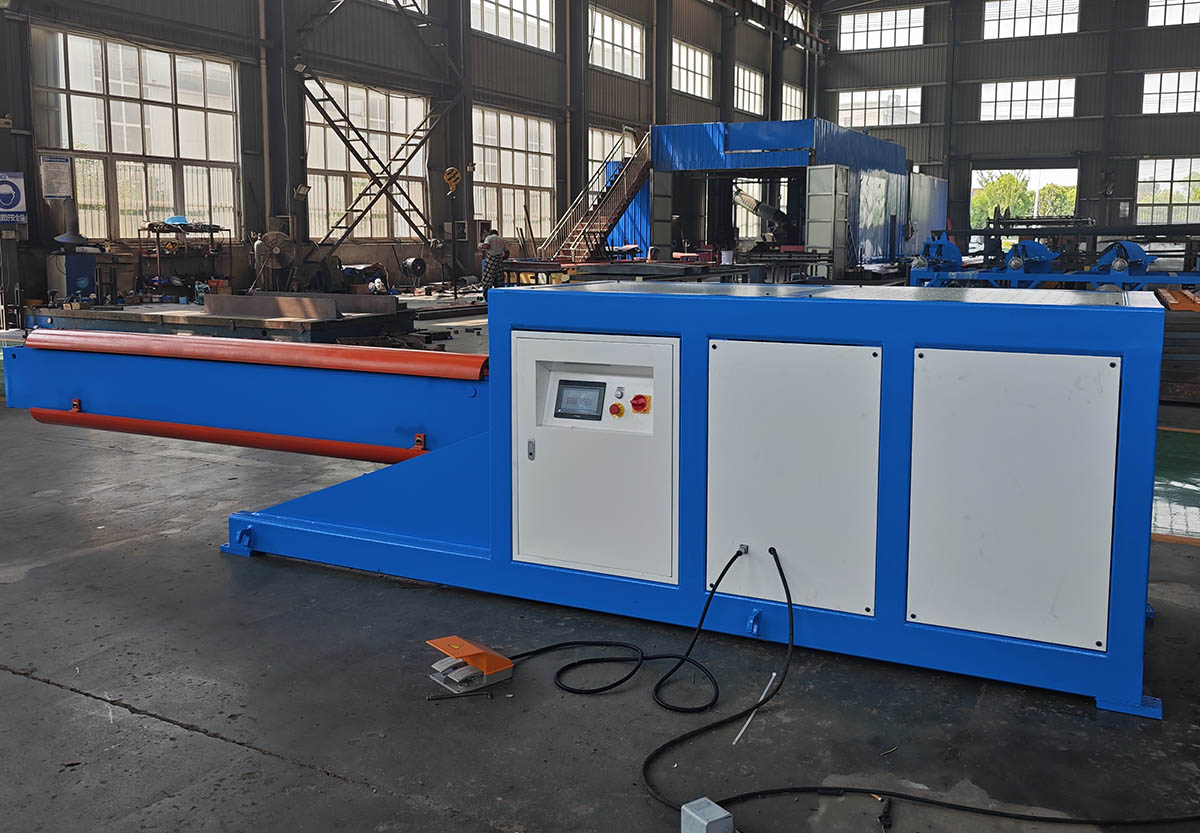

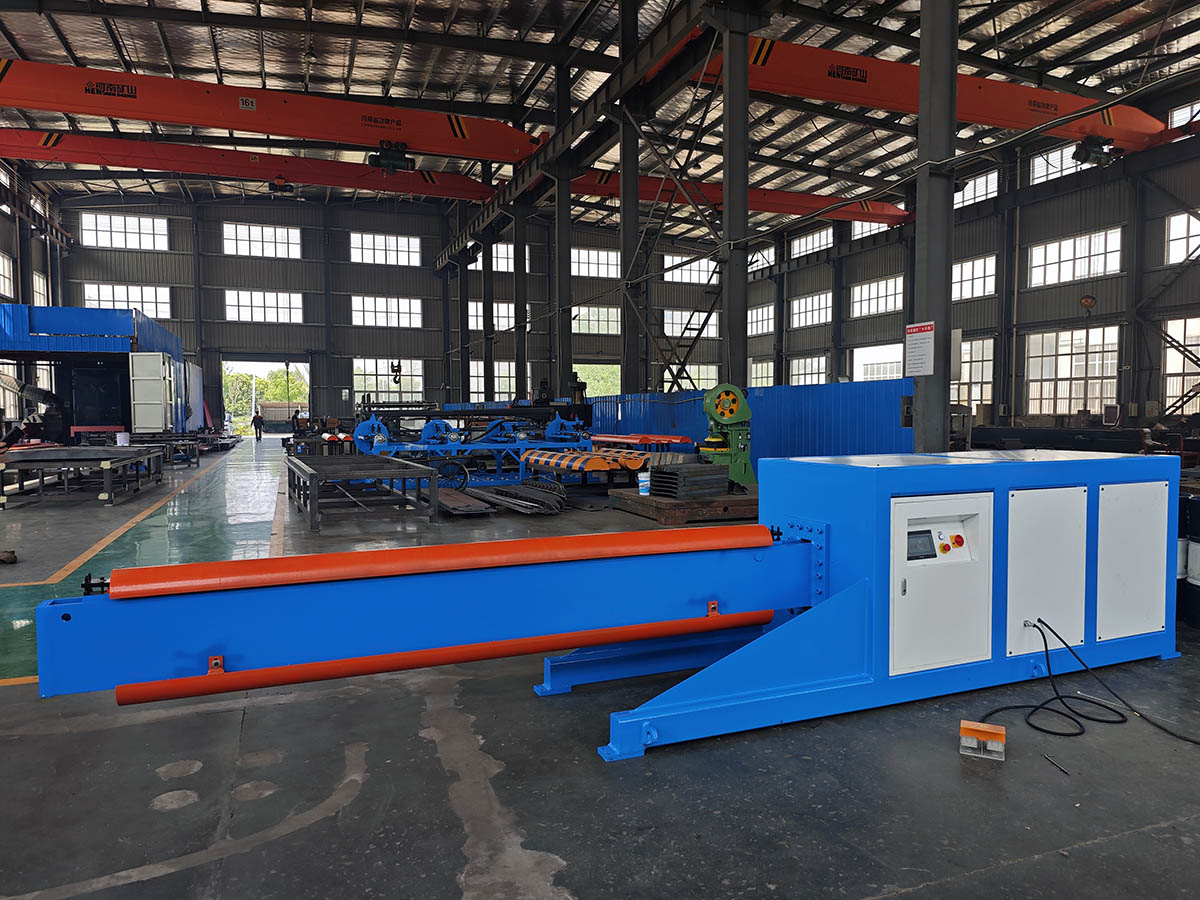

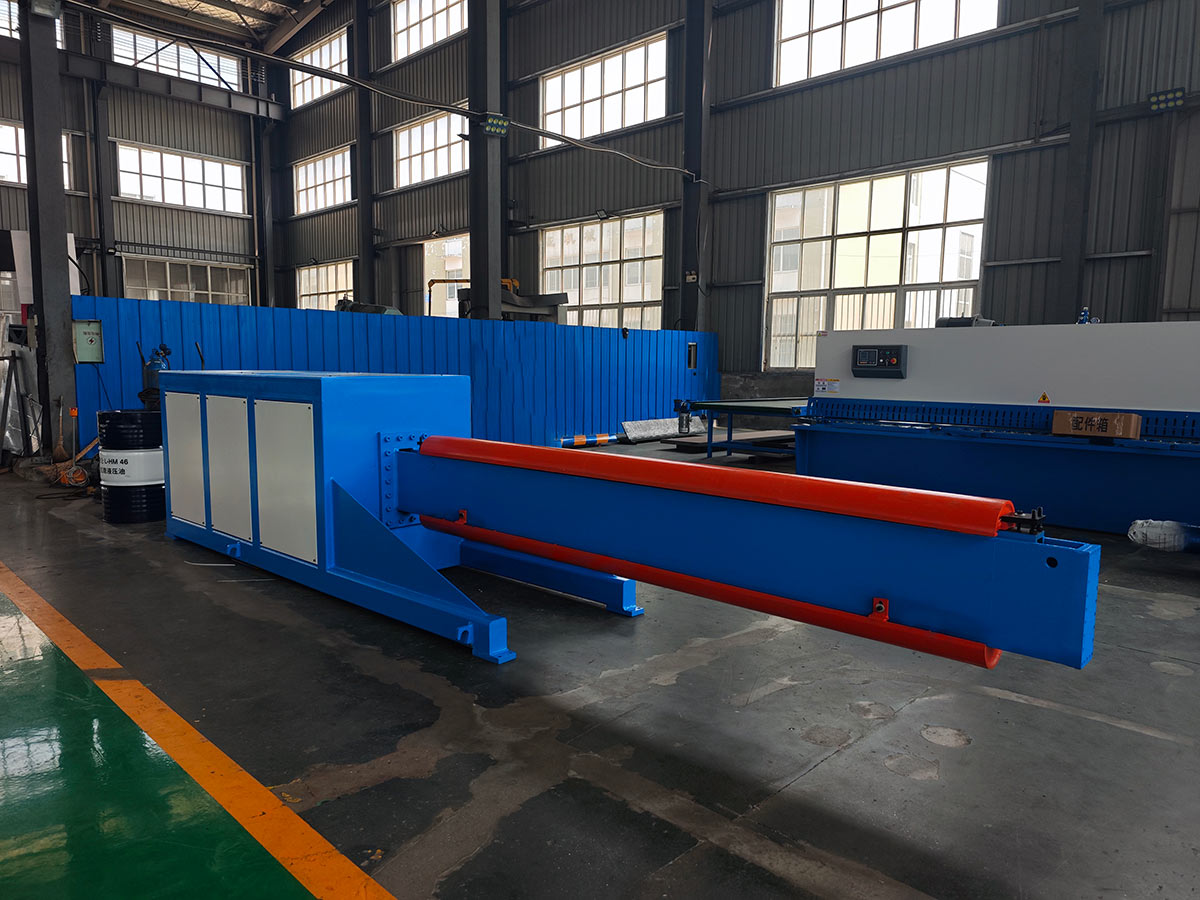

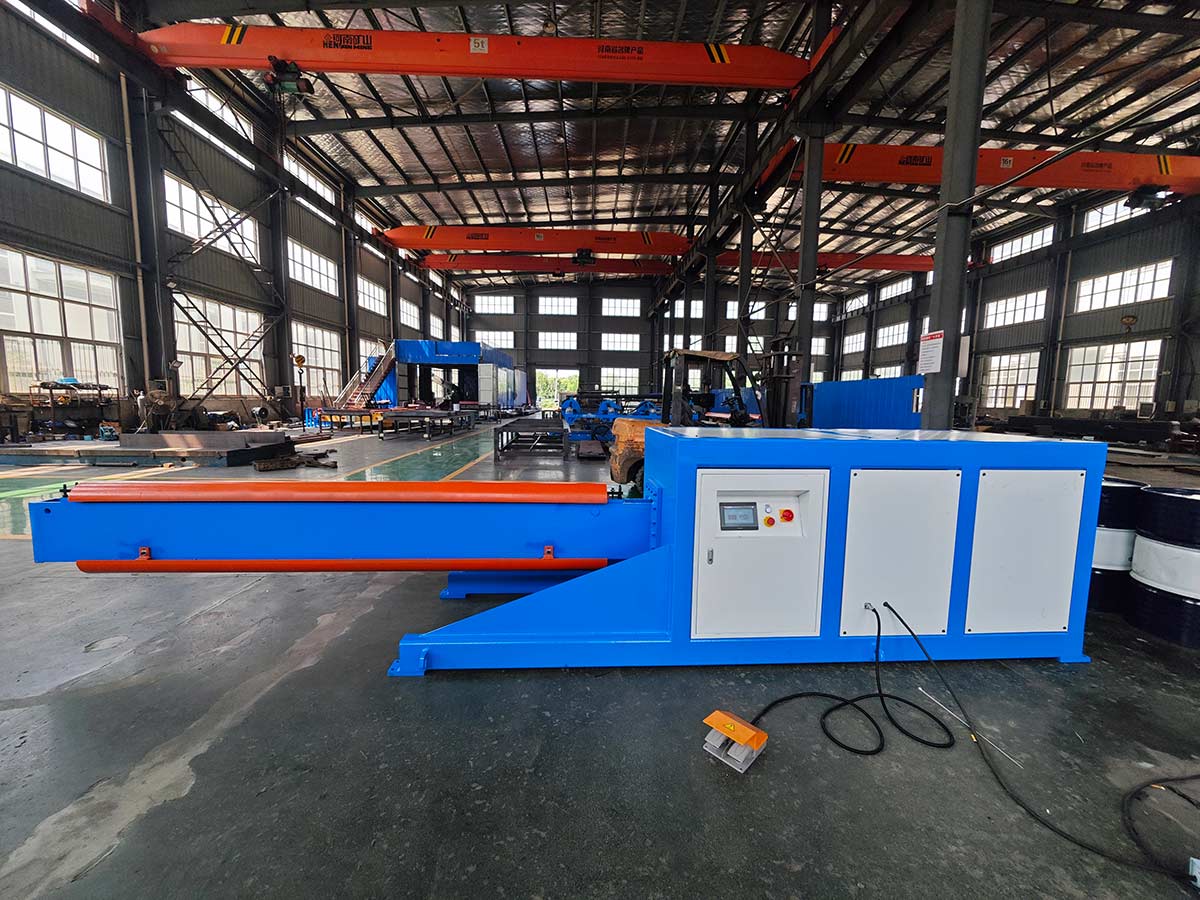

III. Real Photos:
